Products-Marking-Characteristics

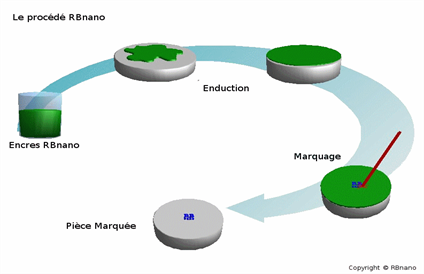

Laser marking is a micronic marking on a mineral inks deposit (Range of RBnano MINK products). The detailed diagram below helps to understand the production process.
Electron Beam marking is a marking nanometric on a mineral ink deposit (Range of RBnano Mink). The detailed diagram below helps to understand the process.
Id’Hol marking is an encrypted phase hologram aiming at combating counterfeiting which is directly engraved on the substrate at the nanometer scale. A simple laser pointer reveals the hologram information.
Electron Beam marking is a marking nanometric on a mineral ink deposit (Range of RBnano Mink). The detailed diagram below helps to understand the process.
Id’Hol marking is an encrypted phase hologram aiming at combating counterfeiting which is directly engraved on the substrate at the nanometer scale. A simple laser pointer reveals the hologram information.

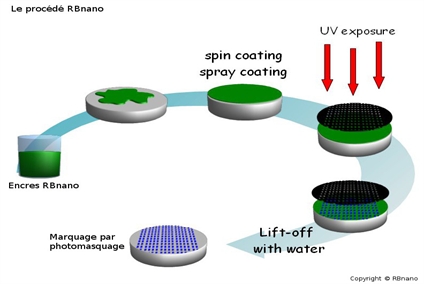

The marking by photo masking uses a mask opaque to UV or visible light with windows. It is put down on the piece coated with mineral ink. After exposure to light, the unexposed ink is removed by water washing.
The Screen printing is a printing method that uses interposed stencils between the ink and the support. We are developing new formulations adapted to this method.
The Inkjet printing is well known to all people. We adapt our formulations to this method.
The Screen printing is a printing method that uses interposed stencils between the ink and the support. We are developing new formulations adapted to this method.
The Inkjet printing is well known to all people. We adapt our formulations to this method.
Processable Materials
Oxides: Fe2O3, Al2O3, SiO2, ZnO, SnO2, ZnO, SnO2, In2O3, TiO2, ZrO2 , Ln2O3, CoFe2O4, BaTiO3, PbTiO3, BaAl2O4, ITO, Y2O3/Eu(Rouge),ZnSiO4/Mn (Vert),(BaMg)Al2O4/ Eu(Bleu).
Semiconductors: CdS, CdSe, ZnS, PbS
Semiconductors: CdS, CdSe, ZnS, PbS
Materials Supports
Silicon, glass, ITO glass, ceramic, sapphire, steel, aluminum, Noble Metals, Plastics, Media Plan or curved.
